Flagship 12,000–24,000 BPH rotary turret labeling system for single-side, double-side, 3-side, and 4-side wrap labeling on flat, square, and round bottles; features screw + starwheel handling and 8-axis tool-free adjustment.
High-Speed Rotary Labeling Machine (T-218) achieves ±1mm (excluding product & label tolerances) labeling accuracy at speeds of 12,000–24,000 bottles/hour (200–400 pcs/min). Applicable product size: Flat, Square, Round & Shaped Containers (Starwheel customized to bottle); label size: Length: 30–200mm | Backing Width: 20–180mm; machine footprint: 3000 × 2600 × 2100 mm (L×W×H) (AC 110–380V / 50Hz, Approx. 2,000 kg).
Standard factory configuration parameters. Non-standard dimensions and speed upgrades can be customized.
| Parameter | Specification Value | Engineering Note |
|---|---|---|
| Model Code | T-218 | Dongguan Henglitong Standard / Custom Series |
| Labeling Accuracy | ±1mm (excluding product & label tolerances) | Servo / Stepper Closed-Loop Control |
| Labeling Speed | 12,000–24,000 bottles/hour (200–400 pcs/min) | Adjustable via PLC Touch Screen |

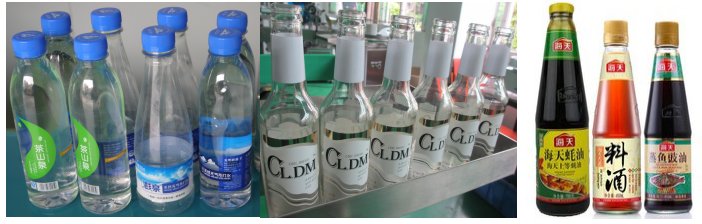

| Applicable Product Size | Flat, Square, Round & Shaped Containers (Starwheel customized to bottle) | Custom fixtures available for special shapes |
| Applicable Label Size | Length: 30–200mm | Backing Width: 20–180mm | Supports opaque or transparent self-adhesive labels |
| Machine Dimensions (L×W×H) | 3000 × 2600 × 2100 mm (L×W×H) | Heavy-duty stainless steel & anodized aluminum frame |
| Power Supply | AC 110–380V / 50Hz | 110V/220V/380V 50/60Hz configurable for destination country |
| Net Weight | Approx. 2,000 kg | Export fumigation-free wooden crate packaging |
| Label Roll Inner Core | Ø76 mm | Standard industrial roll core |
| Label Roll Max Outer Dia. | Max. Ø400 mm | High-capacity unwind disc |
| Optional Configurations & Coding | 8-dimensional spatial tool-free head adjustment; Variable-pitch screw + starwheel infeed; Mechanical cam / servo rotary turret positioning; Online vision & coding | Ribbon coder, inkjet, vision inspection, inline conveyor |
| Target Industries | Beverage & Mineral Water, Beer & Wine, Daily Chemical & Personal Care, Food & Condiments, Pharmaceutical High-Speed Lines | 74+ verified industry cases available |
This model handles container dimensions within the specified range above and supports custom starwheels, centering chains, or contoured fixtures for special shapes. It can run standalone or connect directly to upstream filling/capping conveyors.
Actual throughput (pcs/min) depends on container length, label web length, and feeding method. Provide your container L×W×H (or diameter), label L×W, and winding direction so our engineers can calculate your exact line cycle rate.
We offer thermal ribbon coders, hot-stamp printers, CIJ/TIJ inkjet integration, transparent-label optical sensors, vision barcode inspection, NG rejection, and 110V/220V/380V country-specific electrical standards.
Simply submit the RFQ form below or contact us on WhatsApp (+86 137-1277-8919). Ship 20–50 sample containers and 1 label roll to our Dongkeng, Dongguan factory—we will record a full HD test-labeling video for your approval free of charge.
Our 10-person senior mechanical & PLC team (8+ years experience) oversees your project. Every shipment includes full FAT video verification, English/localized operation manuals, circuit schematics, toolkits, and 1-on-1 remote video commissioning.
