High-speed horizontal conveyor and roll-on labeling system (40–300 pcs/min, ±0.5mm) engineered for slender cylindrical items that cannot stand stably upright: vials, ampoules, syringes, pens, lipsticks, and batteries.
Intelligent Automatic Horizontal Round Bottle Labeling Machine (T219) achieves ±0.5mm (excluding product & label tolerances) labeling accuracy at speeds of 40–300 pcs/min (related to product & label size). Applicable product size: Diameter: Ø10mm – Ø30mm (customizable); label size: Length: 20–100mm | Width: 20–90mm; machine footprint: 2000 × 850 × 1450 mm (L×W×H) (AC 110–220V / 50Hz, Approx. 200 kg).
Standard factory configuration parameters. Non-standard dimensions and speed upgrades can be customized.
| Parameter | Specification Value | Engineering Note |
|---|---|---|
| Model Code | T219 | Dongguan Henglitong Standard / Custom Series |
| Labeling Accuracy | ±0.5mm (excluding product & label tolerances) | Servo / Stepper Closed-Loop Control |
| Labeling Speed | 40–300 pcs/min (related to product & label size) | Adjustable via PLC Touch Screen |
| Applicable Product Size | Diameter: Ø10mm – Ø30mm (customizable) | Custom fixtures available for special shapes |
| Applicable Label Size | Length: 20–100mm | Width: 20–90mm | Supports opaque or transparent self-adhesive labels |
| Machine Dimensions (L×W×H) | 2000 × 850 × 1450 mm (L×W×H) | Heavy-duty stainless steel & anodized aluminum frame |
| Power Supply | AC 110–220V / 50Hz | 110V/220V/380V 50/60Hz configurable for destination country |
| Net Weight | Approx. 200 kg | Export fumigation-free wooden crate packaging |
| Label Roll Inner Core | Ø76 mm | Standard industrial roll core |
| Label Roll Max Outer Dia. | Max. Ø300 mm | High-capacity unwind disc |
| Optional Configurations & Coding | Thermal ribbon coder or inkjet printer (prints MFG/EXP/LOT online); Hopper auto-feeder for vials, pens, and tubes | Ribbon coder, inkjet, vision inspection, inline conveyor |

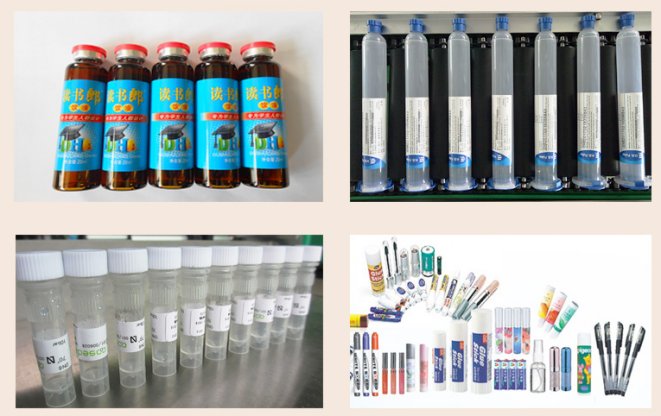

| Target Industries | Pharmaceuticals (Vials & Ampoules), Cosmetics (Lipsticks & Eyeliners), Stationery (Pens & Markers), Medical Devices (Syringes & Tubes) | 74+ verified industry cases available |
This model handles container dimensions within the specified range above and supports custom starwheels, centering chains, or contoured fixtures for special shapes. It can run standalone or connect directly to upstream filling/capping conveyors.
Actual throughput (pcs/min) depends on container length, label web length, and feeding method. Provide your container L×W×H (or diameter), label L×W, and winding direction so our engineers can calculate your exact line cycle rate.
We offer thermal ribbon coders, hot-stamp printers, CIJ/TIJ inkjet integration, transparent-label optical sensors, vision barcode inspection, NG rejection, and 110V/220V/380V country-specific electrical standards.
Simply submit the RFQ form below or contact us on WhatsApp (+86 137-1277-8919). Ship 20–50 sample containers and 1 label roll to our Dongkeng, Dongguan factory—we will record a full HD test-labeling video for your approval free of charge.
Our 10-person senior mechanical & PLC team (8+ years experience) oversees your project. Every shipment includes full FAT video verification, English/localized operation manuals, circuit schematics, toolkits, and 1-on-1 remote video commissioning.
High-efficiency inline automatic rolling labeler (20–100 pcs/min) for rigid round, square, and hexagonal bottles across cosmetics, food, pharma, and daily chemicals; supports full/half circumference wrap and online coding.
Three-roller automatic positioning labeler for cylindrical and slightly tapered round bottles (Ø25–110mm); realizes full/half wrap and symmetrical front-and-back double labeling with arbitrary spacing adjustment.
Space-saving desktop automatic conveyor labeler (1200×650×750mm, 20–100 pcs/min) for rigid round, square, and hexagonal bottles; delivers full-automatic inline speed in a compact footprint.
Tell us about your container and label dimensions. Our senior automation engineer will reply within 12 hours with a matched machine recommendation, parameter sheet, and FOB/CIF quotation.
