Adopts the roll-on labeling method with stable operation regardless of label size; applies transparent film labels without bubbles on upper planes, curved surfaces, and concave surfaces with ±0.5mm accuracy.
Semi-Automatic Rolling Labeling Machine (T312) achieves ±0.5mm (excluding product & label tolerances) labeling accuracy at speeds of 15–30 pcs/min (related to product & label size). Applicable product size: L: 20–200mm | W: 20–180mm | H: 5–130mm; label size: Length: 15–300mm | Backing Width: 15–150mm; machine footprint: 880 × 550 × 880 mm (L×W×H) (AC 110–220V / 50Hz | Air Pressure: 0.4–0.6 MPa, Approx. 60 kg).
Standard factory configuration parameters. Non-standard dimensions and speed upgrades can be customized.
| Parameter | Specification Value | Engineering Note |
|---|---|---|
| Model Code | T312 | Dongguan Henglitong Standard / Custom Series |
| Labeling Accuracy | ±0.5mm (excluding product & label tolerances) | Servo / Stepper Closed-Loop Control |
| Labeling Speed | 15–30 pcs/min (related to product & label size) | Adjustable via PLC Touch Screen |
| Applicable Product Size | L: 20–200mm | W: 20–180mm | H: 5–130mm | Custom fixtures available for special shapes |
| Applicable Label Size | Length: 15–300mm | Backing Width: 15–150mm | Supports opaque or transparent self-adhesive labels |
| Machine Dimensions (L×W×H) | 880 × 550 × 880 mm (L×W×H) | Heavy-duty stainless steel & anodized aluminum frame |
| Power Supply | AC 110–220V / 50Hz | Air Pressure: 0.4–0.6 MPa | 110V/220V/380V 50/60Hz configurable for destination country |
| Net Weight | Approx. 60 kg | Export fumigation-free wooden crate packaging |
| Label Roll Inner Core | Ø76 mm | Standard industrial roll core |
| Label Roll Max Outer Dia. | Max. Ø300 mm | High-capacity unwind disc |
| Optional Configurations & Coding | Custom contoured silicone roller for arc/concave surfaces; Custom workpiece fixture jig; Thermal ribbon coder (prints MFG/EXP/LOT while labeling) | Ribbon coder, inkjet, vision inspection, inline conveyor |
| Target Industries | Cosmetics, Electronics & 3C, Food & Beverage, Pharmaceuticals, Plastics & Hardware | 74+ verified industry cases available |
This model handles container dimensions within the specified range above and supports custom starwheels, centering chains, or contoured fixtures for special shapes. It can run standalone or connect directly to upstream filling/capping conveyors.
Actual throughput (pcs/min) depends on container length, label web length, and feeding method. Provide your container L×W×H (or diameter), label L×W, and winding direction so our engineers can calculate your exact line cycle rate.
We offer thermal ribbon coders, hot-stamp printers, CIJ/TIJ inkjet integration, transparent-label optical sensors, vision barcode inspection, NG rejection, and 110V/220V/380V country-specific electrical standards.
Simply submit the RFQ form below or contact us on WhatsApp (+86 137-1277-8919). Ship 20–50 sample containers and 1 label roll to our Dongkeng, Dongguan factory—we will record a full HD test-labeling video for your approval free of charge.
Our 10-person senior mechanical & PLC team (8+ years experience) oversees your project. Every shipment includes full FAT video verification, English/localized operation manuals, circuit schematics, toolkits, and 1-on-1 remote video commissioning.

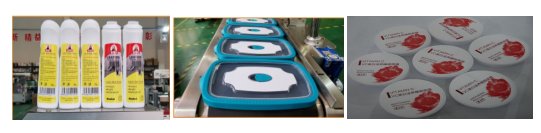

Multi-functional roll-on labeler engineered for flat bottles, round bottles, square bottles, hexagonal jars, tapered bottles, prismatic jars, and irregular containers with bubble-free ±0.5mm precision.
